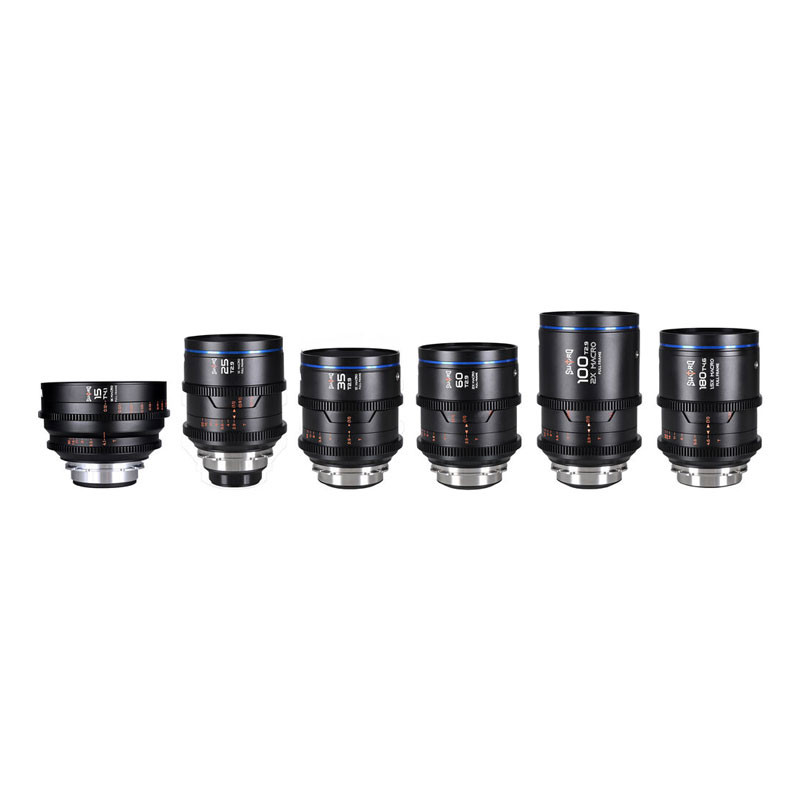

The Venus Optics Laowa Sword Macro Cine 6-Lens Set includes six focal lengths for most cases. This ARRI PL full frame-compatible set features 15, 25, 35, 60, 100, and 180mm focal lengths. The 25, 35, 60, and 100mm lenses share cine-standard gearing, front diameters, filter threads, and aperture ranges for easy switching. The 15mm lens has a T4.1 to T32 aperture range, and the 180mm lens has a T4.6 to T32 aperture range. See below for more information on the individual lenses included in this kit.
Venus Optics Laowa Sword 15mm T4.1 1x Macro Cine Lens (ARRI PL)
Designed for full-frame camera sensors, the Laowa Sword 15mm T4.1 1x Macro Cine Lens from Venus Optics captures ultra-sharp macro footage with compatible ARRI PL cameras. The 15mm lens features a T4.1 to T32 aperture range and is constructed of 12 elements in 9 groups. Create a shallow depth of field and dreamy bokeh with the 14-blade iris. This focal length has a 1x magnification ratio and a 12 cm minimum focus distance for detailed close-ups.
The Sword series is engineered with improved chromatic aberration control to prevent color fringing while maintaining sharp and vibrant images. The focus ring rotates 84° and the iris ring 37° for intuitive manual adjustments. A 110° angle of view ensures your subject remains in the frame. The 15mm version has a 100mm outer diameter and 95mm filter thread for use with compatible matte boxes and filters. Cine-standard gearing on the lens and separately available interchangeable mounts provide wide compatibility with cameras and accessories.
- Maximum Aperture: T4.1
- Minimum Aperture: T32
- Lens Mount: ARRI PL
- Interchangeable Mount: Yes
- Lens Format Coverage: Full Frame
- Image Circle: 43.2 mm
- Angle of View: Full Frame Horizontal: 100°
- Focus Scales: Metric, Imperial
- Optical Design: 12 Elements in 9 Groups
- Filter Thread: 95 mm
- Minimum Focus Distance: 12 cm
- Maximum Magnification Ratio: 1:1
- Diaphragm Blades: 14
- Image Stabilization: No
- Gear Standard: 0.8 MOD
- Gear Rotation: Focus: 84°, Iris: 37°
- Electronic Communication: No
- Coating: No
- Environmental Resistance: No
- Diameter: Front: 100 mm
- Length: 67.27 mm
- Weight: 640 g
Venus Optics Laowa Sword 25mm T2.9 1x Macro Cine Lens (ARRI PL)
Designed for full-frame camera sensors, the Laowa Sword 25mm T2.9 1x Macro Cine Lens from Venus Optics captures ultra-sharp macro footage with compatible ARRI PL cameras. The 25mm lens features a T2.9 to T22 aperture range and is constructed of 13 elements in 10 groups. Create a shallow depth of field and dreamy bokeh with the 7-blade iris. This focal length has a 1x magnification ratio and a 16.7 cm minimum focus distance for detailed close-ups.
The Sword series is engineered with improved chromatic aberration control to prevent color fringing while maintaining sharp and vibrant images. The focus ring rotates 100°, and the iris ring 40° for intuitive manual adjustments. An 82° angle of view ensures your subject remains in the frame. Like most of the series, the 25mm version has an 80mm outer diameter and 77mm filter thread for use with compatible matte boxes and filters. Cine-standard gearing on the lens and separately available interchangeable mounts provide wide compatibility with cameras and accessories.
- Maximum Aperture: T2.9
- Minimum Aperture: T22
- Lens Mount: ARRI PL
- Interchangeable Mount: Yes
- Lens Format Coverage: Full Frame
- Image Circle: 43.2 mm
- Angle of View: Full Frame Horizontal: 82°
- Focus Scales: Metric, Imperial
- Optical Design: 13 Elements in 10 Groups
- Filter Thread: 77 mm
- Minimum Focus Distance: 16.8 cm
- Maximum Magnification Ratio: 1:1
- Diaphragm Blades: 7
- Image Stabilization: No
- Gear Standard: 0.8 MOD
- Gear Rotation: Focus: 100°, Iris: 40°
- Electronic Communication: No
- Coating: No
- Environmental Resistance: No
- Diameter: 80 mm
- Length: 94.56 mm
- Weight: 755 g
Venus Optics Laowa Sword 35mm T2.9 1x Macro Cine Lens (ARRI PL)
Designed for full-frame camera sensors, the Laowa Sword 35mm T2.9 1x Macro Cine Lens from Venus Optics captures ultra-sharp macro footage with compatible ARRI PL cameras. The 35mm lens features a T2.9 to T22 aperture range and is constructed of 13 elements in 10 groups. Create a shallow depth of field and dreamy bokeh with the 13-blade iris. This focal length has a 1x magnification ratio and a 17.7 cm minimum focus distance for detailed close-ups.
The Sword series is engineered with improved chromatic aberration control to prevent color fringing while maintaining sharp and vibrant images. The focus ring rotates 270°, and the iris ring 59° for intuitive manual adjustments. A 63° angle of view ensures your subject remains in the frame. Like most of the series, the 35mm version has an 80mm outer diameter and 77mm filter thread for use with compatible matte boxes and filters. Cine-standard gearing on the lens and separately available interchangeable mounts provide wide compatibility with cameras and accessories.
- Maximum Aperture: T2.9
- Minimum Aperture: T22
- Lens Mount: ARRI PL
- Interchangeable Mount: Yes
- Lens Format Coverage: Full Frame
- Image Circle: 43.2 mm
- Angle of View: Full Frame, Horizontal: 63°
- Focus Scales: Metric, Imperial
- Optical Design: 13 Elements in 10 Groups
- Filter Thread: 77 mm
- Minimum Focus Distance: 17.8 cm
- Maximum Magnification Ratio: 1:1
- Diaphragm Blades: 13
- Image Stabilization: No
- Gear Standard: 0.8 MOD
- Gear Rotation: Focus: 270°, Iris: 59°
- Electronic Communication: No
- Coating: No
- Environmental Resistance: No
- Diameter: 80 mm
- Length: 94.56 mm
- Weight: 750 g
Venus Optics Laowa Sword 60mm T2.9 2x Macro Cine Lens (ARRI PL)
Designed for full-frame camera sensors, the Laowa Sword 60mm T2.9 2x Macro Cine Lens from Venus Optics captures ultra-sharp macro footage with compatible ARRI PL cameras. The 60mm lens features a T2.9 to T22 aperture range and is constructed of 14 elements in 11 groups. Create a shallow depth of field and dreamy bokeh with the 13-blade iris. This focal length has a 2x magnification ratio and an 21 cm minimum focus distance for detailed close-ups.
The Sword series is engineered with improved chromatic aberration control to prevent color fringing while maintaining sharp and vibrant images. The focus ring rotates 160°, and the iris ring 73° for intuitive manual adjustments. A 40° angle of view ensures your subject remains in the frame. Like most of the series, the 60mm version has an 80mm outer diameter and 77mm filter thread for use with compatible matte boxes and filters. Cine-standard gearing on the lens and separately available interchangeable mounts provide wide compatibility with cameras and accessories.
- Maximum Aperture: T2.9
- Minimum Aperture: T22
- Lens Mount: ARRI PL
- Interchangeable Mount: Yes
- Lens Format Coverage: Full Frame
- Image Circle: 43.2 mm
- Angle of View: Full Frame, Horizontal: 40°
- Focus Scales: Metric, Imperial
- Optical Design: 14 Elements in 11 Groups
- Filter Thread: 77 mm
- Minimum Focus Distance: 21 cm
- Maximum Magnification Ratio: 2.0:1
- Diaphragm Blades: 13
- Image Stabilization: No
- Gear Standard: 0.8 MOD
- Gear Rotation: Focus: 160°, Iris: 73°
- Electronic Communication: No
- Coating: No
- Environmental Resistance: No
- Diameter: 80 mm
- Length: 112.93 mm
- Weight: 736 g
Venus Optics Laowa Sword 100mm T2.9 2x Macro Cine Lens (ARRI PL)
Designed for full-frame camera sensors, the Laowa Sword 100mm T2.9 2x Macro Cine Lens from Venus Optics captures ultra-sharp macro footage with compatible ARRI PL cameras. The 100mm lens features a T2.9 to T22 aperture range and is constructed of 12 elements in 10 groups. Create a shallow depth of field and dreamy bokeh with the 13-blade iris. This focal length has a 2x magnification ratio and a 24.6 cm minimum focus distance for detailed close-ups.
The Sword series is engineered with improved chromatic aberration control to prevent color fringing while maintaining sharp and vibrant images. The focus ring rotates 220°, and the iris ring 65° for intuitive manual adjustments. A 24° angle of view ensures your subject remains in the frame. Like most of the series, the 100mm version has an 80mm outer diameter and 77mm filter thread for use with compatible matte boxes and filters. Cine-standard gearing on the lens and separately available interchangeable mounts provide wide compatibility with cameras and accessories.
- Maximum Aperture: T2.9
- Minimum Aperture: T22
- Lens Mount: ARRI PL
- Interchangeable Mount: Yes
- Lens Format Coverage: Full Frame
- Image Circle: 43.2 mm
- Angle of View: Full Frame Horizontal: 24°
- Focus Scales: Metric, Imperial
- Optical Design: 12 Elements in 10 Groups
- Filter Thread: 77 mm
- Minimum Focus Distance: 24.7 cm
- Maximum Magnification Ratio: 2.0:1
- Diaphragm Blades: 13
- Image Stabilization: No
- Gear Standard: 0.8 MOD
- Gear Rotation: Focus: 220°, Iris: 65°
- Electronic Communication: No
- Coating: No
- Environmental Resistance: No
- Diameter: 80 mm
- Length: 139.5 mm
- Weight: 957 g
Venus Optics Laowa Sword 180mm T4.6 1.5x Macro Cine Lens (ARRI PL)
Designed for full-frame camera sensors, the Laowa Sword 180mm T4.6 1.5x Macro Cine Lens from Venus Optics captures ultra-sharp macro footage with compatible ARRI PL cameras. The 180mm lens features a T4.6 to T32 aperture range and is constructed of 12 elements in 9 groups. Create a shallow depth of field and dreamy bokeh with the 13-blade iris. This focal length has a 1.5x magnification ratio and a 30 cm minimum focus distance for detailed close-ups.
The Sword series is engineered with improved chromatic aberration control to prevent color fringing while maintaining sharp and vibrant images. The focus ring rotates 270°, and the iris ring 61° for intuitive manual adjustments. A 14° angle of view ensures your subject remains in the frame. Like most of the series, the 100mm version has an 80mm outer diameter and 77mm filter thread for use with compatible matte boxes and filters. Cine-standard gearing on the lens and separately available interchangeable mounts provide wide compatibility with cameras and accessories.
- Maximum Aperture: T4.6
- Minimum Aperture: T32
- Lens Mount: ARRI PL
- Interchangeable Mount: Yes
- Lens Format Coverage: Full Frame
- Image Circle: 43.2 mm
- Angle of View: Full Frame Horizontal: 14°
- Focus Scales: Metric, Imperial
- Optical Design: 12 Elements in 9 Groups
- Filter Thread: 77 mm
- Minimum Focus Distance: 30.6 cm
- Maximum Magnification Ratio: 1.5:1
- Diaphragm Blades: 13
- Image Stabilization: No
- Gear Standard: 0.8 MOD
- Gear Rotation: Focus: 270°, Iris: 61°
- Electronic Communication: No
- Coating: No
- Environmental Resistance: No
- Diameter: 80 mm
- Length: 125.21 mm
- Weight: 734 g
