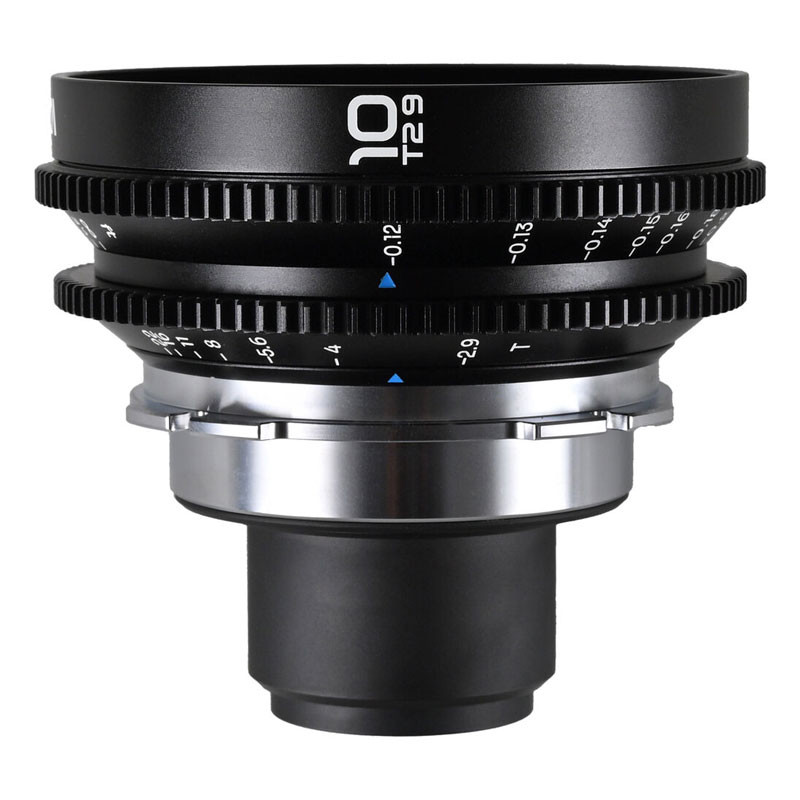

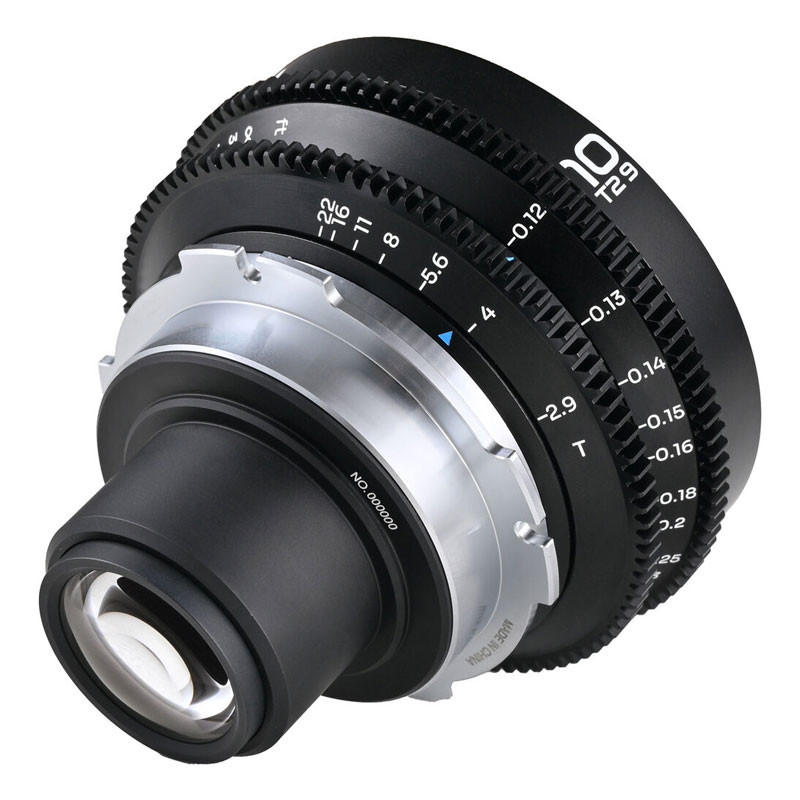

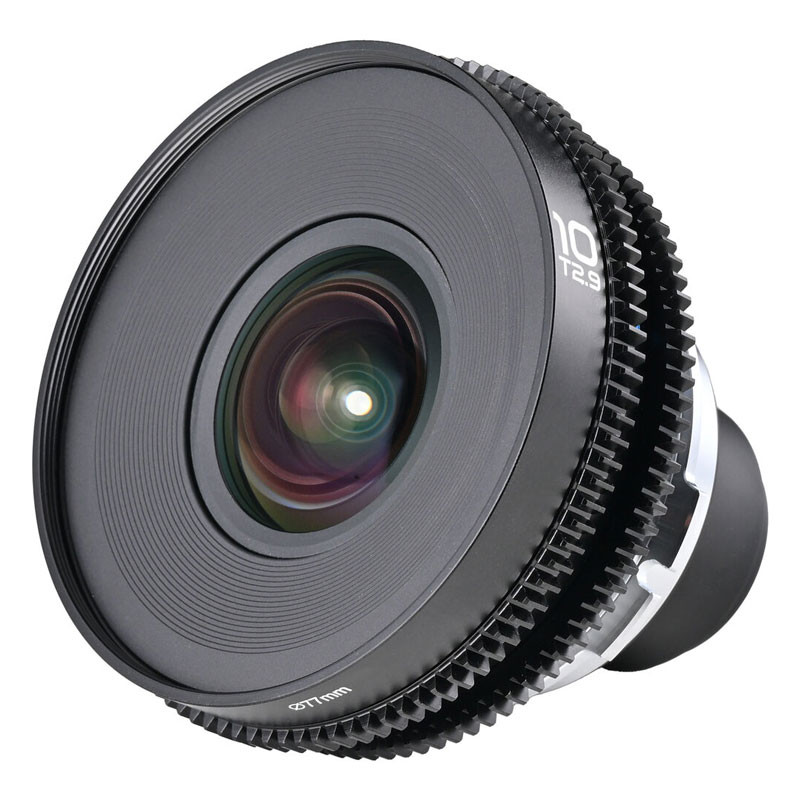

Laowa 10mm T2.9 Zero-D VV Cine Lens (ARRI PL)

Widest Rectilinear Full-Frame Lens

Capture wide-angle shots using a gimbal, drone, or handheld camera rig with the Laowa 10mm T2.9 Zero-D VV Cine Lens from Venus Optics. This ARRI PL-mount 10mm lens can be used with full-frame or VistaVision image sensors, making it compatible with the RED RAPTOR 8K VV and the ARRI ALEXA LF Open Gate cine cameras.

Zero Distortion

A Zero-D design consisting of low-distortion optics helps create precise framing. Close-focusing capabilities allow you to zero in on objects 12 cm away with ease.

Non-Fisheye Views

Ideal for capturing sweeping landscapes and full-range interiors, this prime's compact 10mm focal length and 130.3° diagonal FOV (field of view) make it a superwide rectilinear non-fisheye lens.

High Image Quality

The 10mm Zero-D lens minimizes chromatic aberration, reducing color fringing around high-contrast edges.

Compact Design

This lens weighs only 635 grams, making it suitable for gimbal, drone, and handheld use. Its 80mm front outside diameter, 77mm filter thread, and 0.8 MOD gears let you use it easily with compatible lens accessories.

Specifications

• Maximum Aperture: T2.9
• Minimum Aperture: T22
• Lens Mount: ARRI PL
• Lens Format Coverage: Full-Frame, VistaVision
• Image Circle: 43.2 mm
• Angle of View: Full Frame, Diagonal 130.3°
• Focus Scales: Metric, Imperial
• Optical Design: 15 Elements in 9 Groups
• Filter Thread: 77 mm
• Minimum Focus Distance: 12 cm
• Magnification: 1:4.16 Macro Reproduction Ratio, 0.24x Magnification
• Aperture/Iris Blades: 14
• Image Stabilization: No
• Lens Mounting: No
• Gear Standard: Focus, Iris: 0.8 MOD
• Gear Rotation: Focus: 113°
• Electronic Communication: No
• Diameter: Front 80 mm
• Length: 46.7 mm
• Weight: 640 g
