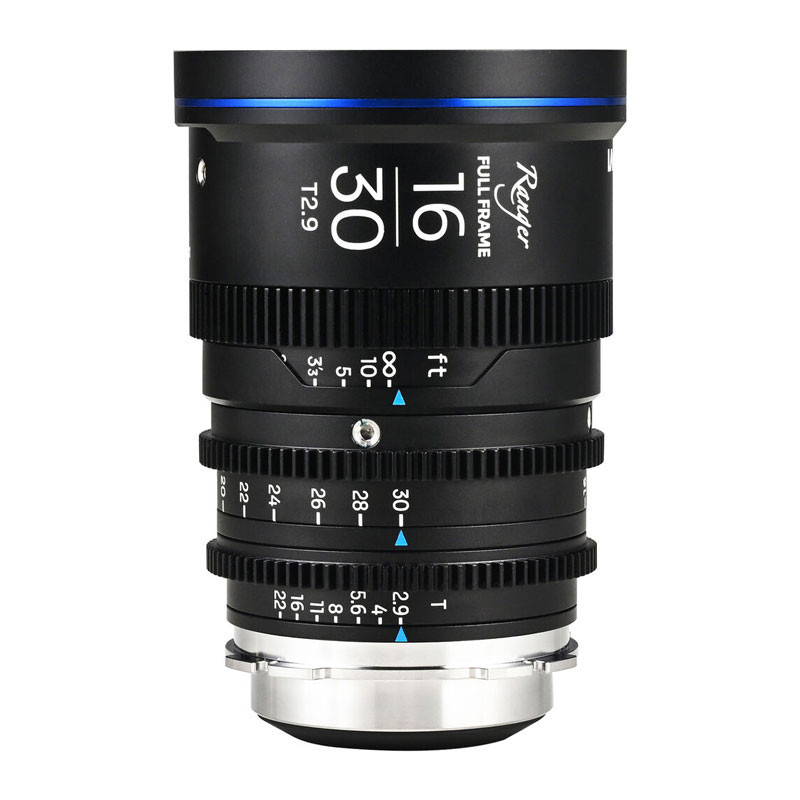

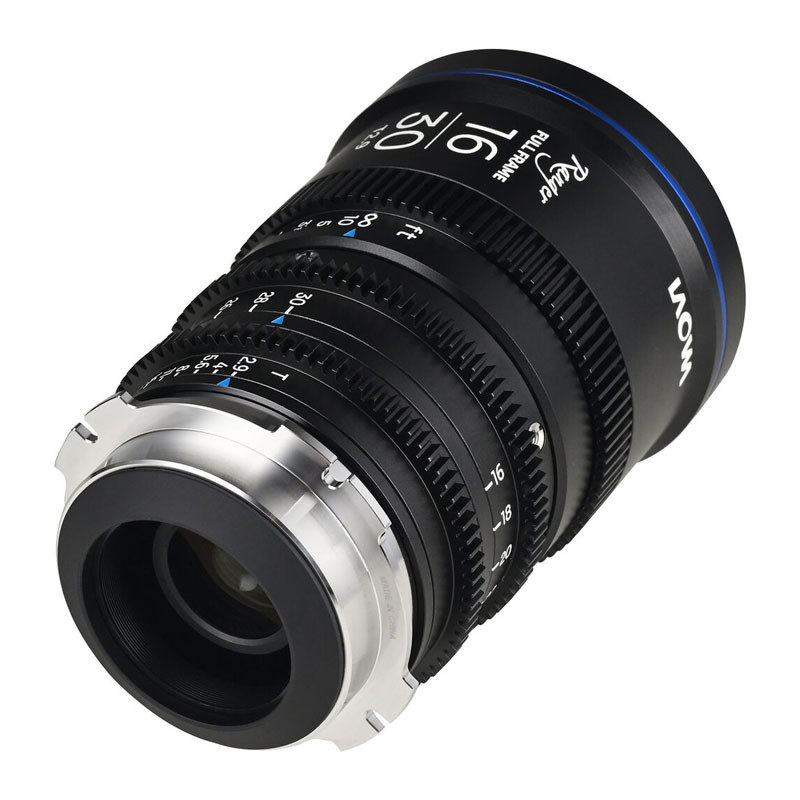

Laowa Ranger FF 16-30mm T2.9 Cine Lens (ARRI PL + EF)

A versatile addition to your full-frame ARRI PL or Canon EF mount camera loadout, this Laowa Ranger 16-30mm T2.9 Cine Zoom Lens from Venus Optics allows you to capture high-quality images throughout its 16 to 30mm zoom range. The parfocal design of the lens features 11 aperture blades in an 18-element and 22-group construction. It has an aperture range of T2.9 to T22 and an 80mm front outside diameter with minimal focus breathing. Capture everything from establishing wide shots to close-ups with background blur with the Laowa Ranger.

Control of focus, aperture, and zoom is intuitive thanks to the throw of each 0.8 MOD gear. Markings on the lens are available in both feet and meters. The lens has a 107° field of view at the wide end and a 71.6° field of view at the telephoto end with a 43.2mm image circle. An included EF bayonet adapts the native PL mount for compatibility with a broader range of cameras, while a 77mm front filter thread allows you to attach compatible lens filters. Additional back focus adjustment can be achieved with the provided shim set.

Specifications

• Maximum Aperture: T2.9
• Minimum Aperture: T22
• Lens Mount: ARRI PL, Canon EF
• Interchangeable Mount: Yes
• Lens Format Coverage: Full Frame
• Image Circle: 43.2 mm
• Focus Scales: Metric, Imperial
• Optical Design: 18 Elements in 12 Groups
• Filter Thread: 77 mm
• Zoom Ratio: 1.875x (Manual)
• Minimum Focus Distance: From Camera Sensor: 33 cm
• Maximum Magnification Ratio: 1:0.145
• Diaphragm Blades: 11
• Image Stabilization: No
• Gear Standard: 0.8 MOD
• Gear Rotation: Focus: 270°, Zoom: 270°, Iris: 42°
• Electronic Communication: No
• Diameter: 80 mm, Maximum: 80 mm
• Length: 107.4 mm
• Weight: 799 g
