Deity SRD Mini (RF Distributor)

Name: Deity SRD Mini (RF Distributor)
Brand: Deity
Price: 282890 HUF
Availability: InStock

Article No:

783-DY-6971842186099

Available for order

282 890 Ft

Bonus point : 2 829 Ft Hogyan működik?

Ultra-Slim RF Distro
Supports Passive and Active Antennas
2-to-8 Active Splitter
1 A In x 4 A Outs / 1 B In x 4 B Outs
Supplies Power to External Antenna
Power: USB, 4-Pin Hirose, RPS Interface
Lightweight CNC Aluminum Construction

Details

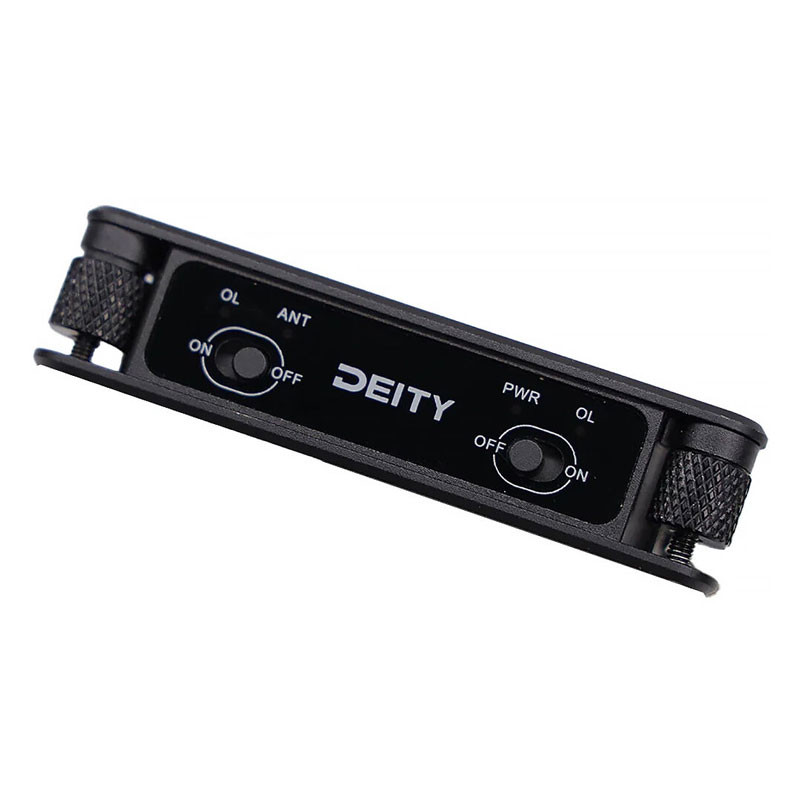

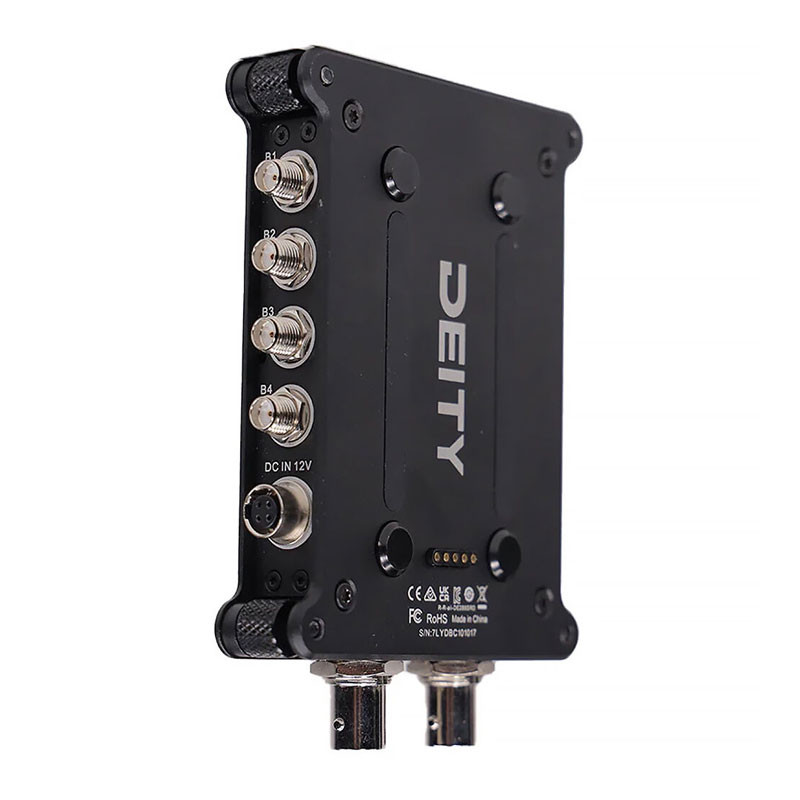

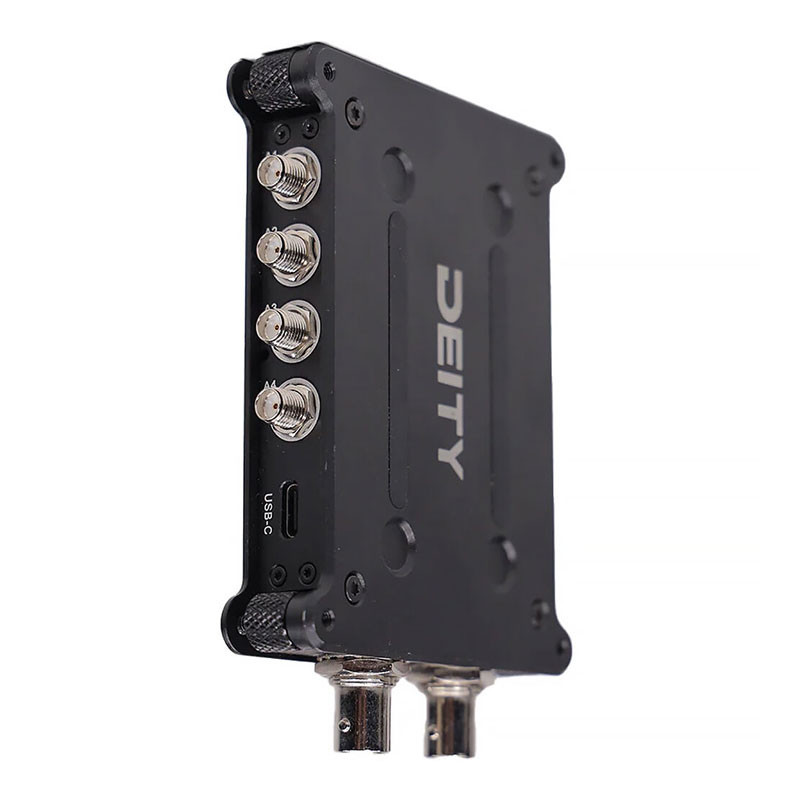

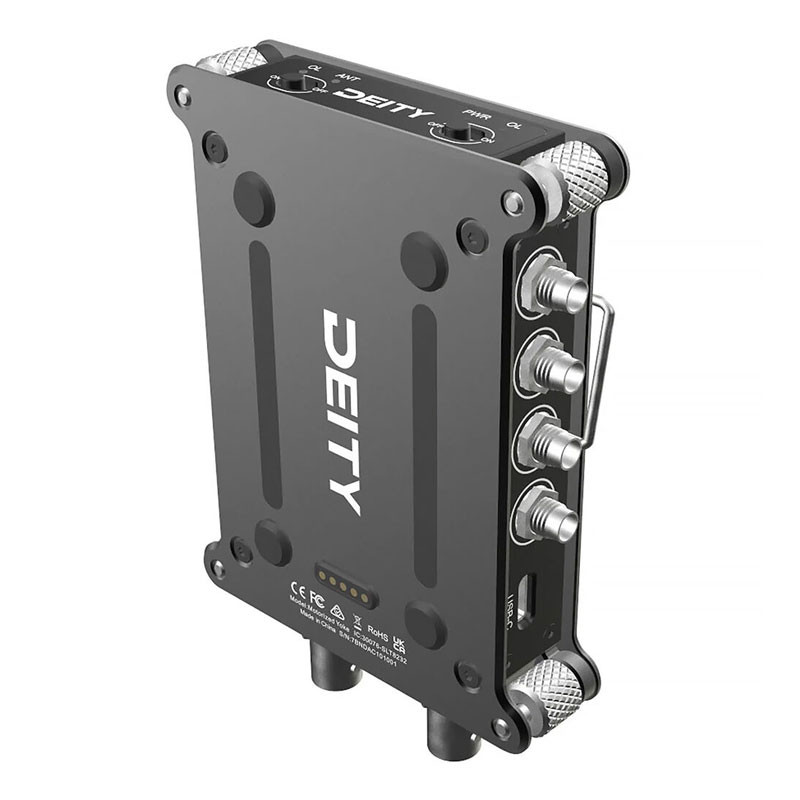

The SRD-Mini has an active splitter that can also power external antenna circuits. Both sides (A/B) of the distributor can independently switch external power on or off. An LED above each switch indicates when the incoming signal overloads the SRD-Mini's RF amplifier. SRD-Mini are ultrasonic connectors that are widely used in the audio community. Two 50 Ohm BNC ports act as A/B inputs, while eight 50 Ohm SMA outputs split the incoming signal. ( 1A x 4A / 1B x 4B.)

The operating range of the SRD-Mini is 470MHz ~ 1GHz. This allows it to operate anywhere in the world and with almost any UHF wireless microphone system you already have. The SRD-Mini features our Regional Power™ system, which allows it to be powered from the SPD-Mini's pogo pins for a cordless power solution. But it also has traditional power inputs, such as a 4-pin Hirose-compatible power input and USB-C.

Info

Gyártó:

Deity

Vendor part number :

783-DY-6971842186099
