Easy-to-Rig 12K Full-Frame Camera

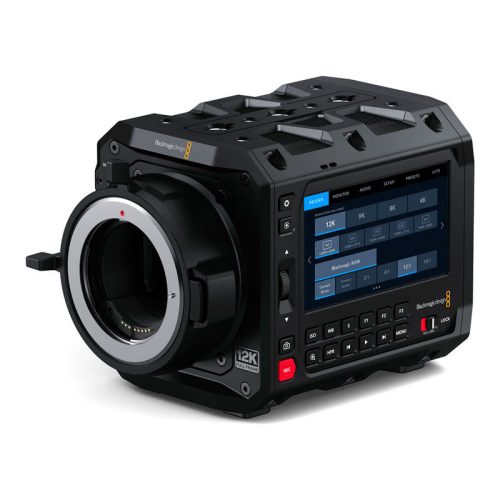

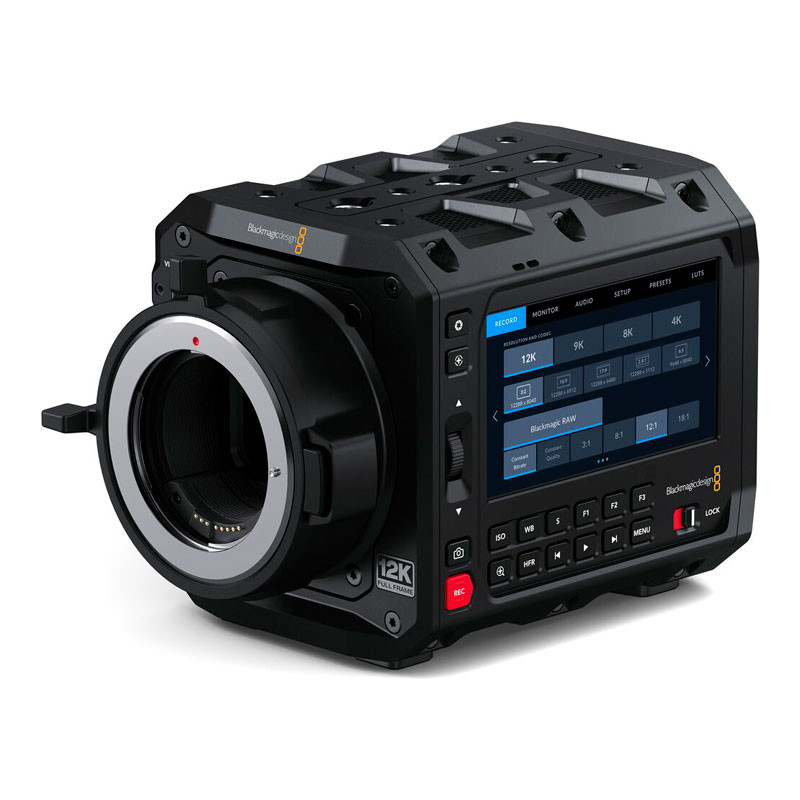

The Blackmagic Design PYXIS 12K Cinema Box Camera combines a full-frame 12K RGBW sensor that captures rich colors and accurate skin tones with the compact, versatile design of the PYXIS 6K camera. It features a native, active Canon EF lens mount, a 36 x 24mm sensor, a wide 16-stop dynamic range, and customizable side plates.
Large-Format Digital Film Sensor
The PYXIS 12K's massive 24 x 36mm full-frame RGBW sensor boasts a native 12,288 x 8040 resolution, letting you create shallow depth of field or use anamorphic lenses without cropping for a truly cinematic look. A 16-stop dynamic range with dual-native ISO up to 25,600 ensures low-noise imagery in all lighting conditions.
Flexible Film Formats
Work in a variety of film formats and aspect ratios without sacrificing quality, thanks to the large sensor. You can also work in true 6:5 anamorphic without needing to crop for widescreen cinematics. Use a Super 35-sized window to create an instant close-up version of your open-gate shot.
Multiple Resolutions and Frame Rates
Shoot in standard video resolutions and frame rates from HD to 12K using the PYXIS 12K with the ability to capture in 12K, 8K, or 4K at the full sensor size. Available resolutions include up to 40 fps at 12,288 x 8040 3:2 open gate, 60 fps at 12,288 x 5112 2.4:1, and 112 fps at 8192 x 3408 8K. There's even an HFR (high framerate) button for quickly switching to your rate without having to access the menu.
HDR Imagery and Dual-Native ISO
The wide 16-stop dynamic range preserves more detail in both the lightest and darkest areas of your image. Set the exposure for an indoor scene while retaining details in the bright outdoor light coming through a window. Optimized for ISO 800, the PYXIS 12K offers ISOs of 200 to 3200 and a maximum ISO 25,600, minimizing grain and noise in your images while maintaining the full dynamic range of the sensor.
Customizable Rigging
Crafted from lightweight yet robust aerospace-grade aluminum, the easy-to-rig PYXIS 12K features multiple 1/4"-20 and 3/8"-16 threads for mounting it on a gimbal, crane, or drone. It also has a range of side plates designed for attaching handgrips, SSD recorders, microphones, and more. It includes a side plate with one 3/8"-16 and two 1/4"-20 threads and an SSD plate with an optional rosette plate with additional threads available separately.
LCD Monitor and Onboard Controls
- Use the built-in 4" LCD touchscreen to monitor and review your shots on set. This full HD-resolution, HDR-compatible screen lets you frame and focus without requiring an additional external unit. A maximum brightness of 1500 cd/m² ensures visibility even in bright sunlit conditions. On-screen overlays show status and recording parameters, histograms, levels, frame guides, and 3D LUTS, among other tools.
- Onboard controls allow you to toggle functions like ISO, white balance, and shutter with ease. A scroll wheel makes quick adjustments, and three customizable function buttons can tailor your workflow to your preference. The controls can be locked to avoid accidental pressing during shooting.
Post-Production-Friendly Formats
The PYXIS 12K records in Blackmagic RAW, preserving detail, exposure, and color control during post-production. It can also record H.264 proxy files in real time for easy sharing. Blackmagic RAW works with Apple Metal, CUDA, and OpenCL, and its media files work on all operating systems.
Multiple Recording Options
Two built-in CFExpress Type-B card slots and a USB-C expansion port allow you to record directly to external flash media disks or SSDs. The high speed of CFexpress cards lets you capture an hour plus in 6K on a single 256GB card.
Live Syncing to Blackmagic Cloud
- News and live event content creators will appreciate the ability to shoot and edit in near real-time using Blackmagic Cloud and the PYXIS 12K's proxy files.
- Users anywhere in the world can upload proxy footage and have their editors start working on scenes almost instantly.
Built-In Streaming
Live stream directly from the PYXIS 12K on set to a secondary location via SRT and RTMP protocols. Compatible platforms like YouTube, Facebook, and X can support signals from the PYXIS 12K for live event production. To share content internally, use an ATEM Streaming Bridge for a wireless link back to the studio.
Expansive Connectivity
- The front of the PYXIS 12K boasts a USB-C port for the Blackmagic URSA Cine EVF and a mini 3-pin XLR analog audio input with +48V Phantom power for microphone integration.
- The back of the PYXIS 12K has a headphone monitoring jack and an additional 3.5mm microphone input. Use the USB-C port at the back of the camera to connect to recording devices or mobile data. A 12G-SDI output integrates a secondary monitor.
- A Reference/Timecode input port syncs your sources.
- Use the fast RJ45 10 GbE Ethernet port supporting up to 10GBase-T to upload footage to Blackmagic Cloud or control the camera remotely.
- Power the PYXIS 12K using the locking 2-pin DC power connector or the Sony BP-U battery plate.
- Download the Blackmagic Camera Control app for wireless Bluetooth control from up to 9.1 meters away.
Specifications
- Lens Mount: EF-Mount
- Lens Communication: Yes
- Sensor Resolution: Effective: 98.8 Megapixel (12,288 x 8040)
- Image Sensor: 35.64 x 23.32 mm (Large Format) CMOS
- Image Stabilization: No
- Built-In ND Filter: No
- Capture Type: Stills & Video
- Shutter Type: Electronic Rolling Shutter
- Advertised Dynamic Range: 16 Stops
- Internal Recording Modes
- Blackmagic RAW: 12288 x 8040 up to 40 fps
9648 x 8040 up to 40 fps
12288 x 6912 up to 45 fps
12288 x 6480 up to 50 fps
7680 x 6408 up to 50 fps
9648 x 6264 up to 50 fps
8192 x 5360 up to 72 fps
6432 x 5360 up to 72 fps
12288 x 5112 up to 60.00 fps
9312 x 4896 up to 65 fps
8688 x 4896 up to 65 fps
8192 x 4608 up to 84 fps
8192 x 4320 up to 90 fps
9312 x 3864 up to 80 fps
8192 x 3408 up to 112 fps
4096 x 2680
3216 x 2680
4096 x 2304
4096 x 2160
4096 x 1704
- External Recording Modes: SDI/BNC 4096 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps, 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
- Fast-/Slow-Motion Support: No
- Built-In Microphone: Stereo
- IP Streaming: Yes
- Media/Memory Card Slot: Dual Slot CFexpress Type B
- Video I/O: 1x BNC (12G-SDI) Output
- Audio I/O: 1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output, 1x 1/8" / 3.5 mm TRS Stereo Microphone Input
- Power I/O: 1x LEMO 2-Pin (12VDC) Input
- Other I/O: 1x USB-C Viewfinder Output, 1x USB-C Control/Data/Video
- 1x BNC (Reference, Timecode), 1x RJ45 (10 Gigabit Ethernet)
- Wireless: Bluetooth Control
- Mobile App Compatible: Yes, Android & iOS
- Global Positioning (GPS, GLONASS, etc.): No
- Display Type: Primary Monitor Fixed 4" Touchscreen LCD
- Resolution: Primary Monitor 1920 x 1080
- Battery Type: Sony BP-U Series
- Operating Conditions: 0 to 40°C up to 90% Humidity
- Storage Conditions: -20 to 45°C
