Nikon ZR 6K Cinema Camera – Compact Powerhouse
The Nikon ZR 6K Cinema Camera combines RED color science with Nikon engineering in an ultra-compact body designed for professional filmmakers and content creators. This Z-mount cinema camera captures stunning 6K60 RAW video, 4K120 slow motion, and 1080p240 high frame rate footage, all with over 15 stops of dynamic range. With advanced autofocus, in-body image stabilization, and 32-bit float audio recording, the ZR 6K delivers cinematic quality in a portable form.
Nikon + RED Color Science
- Supports REDCODE RAW (R3D NE) with REDWideGamutRGB and Log3G10.
- Compatible with Nikon N-RAW, ProRes RAW HQ/422 HQ, H.264, and H.265
- Perfect integration into professional workflows with maximum post-production flexibility.
Professional Video Performance
- Record in 6K60 RAW, 4K120, or 1080p240 for ultra-slow motion.
- Up to 5 stops of image stabilization with NIKKOR Z lenses.
- Load up to 10 custom LUTs for real-time preview.
- Full-frame CMOS sensor ensures clean, cinematic imagery.
High-Quality Audio Recording
- 32-bit float and 24-bit audio capture for unmatched dynamic range.
- Built-in microphones plus external mic support.
- Digital hot shoe compatibility with Nikon ME-D10 and H2315 microphones.
- Headphone jack for real-time audio monitoring.
Intelligent Autofocus with Deep Learning
- AI-powered autofocus capable of recognizing up to 9 subjects.
- Face, eye, animal, and vehicle detection with precise tracking.
- Maintains focus even in fast-moving, dynamic environments.
Bright, Flexible Display
- 4” tilting touchscreen with 3.07M dots, DCI-P3 color gamut.
- 1000 nits brightness for outdoor shooting.
- Auto-rotation for vertical or horizontal operation.
Recording & Connectivity
- CFexpress Type B slot for main recording, plus microSD slot for proxy files.
- Micro-HDMI output for monitors or external recorders.
- USB-C port for data transfer and power supply.
- Wireless connectivity: Wi-Fi and Bluetooth.
Power & Portability
- Powered by EN-EL15c battery or via USB-C external sources.
- Ultra-compact body: 133 × 80.5 × 48.7 mm, weight only 540 g.
- Small enough to mount on gimbals, drones, or rigs for versatile shooting.
Nikon ZR
By combining RED color science and Nikon engineering, the Nikon ZR 6K Cinema Camera is a first-of-its-kind powerhouse designed to capture stunning cinematic images in one compact body. This tiny Z-mount cinema camera allows you to use a variety of lenses, and internal stabilization provides a smooth, steady image with 15+ stops of dynamic range. Features include 32-bit float audio, advanced autofocus, dual-base ISO, and up to 6K60 video capture in REDCODE, Z-RAW, or ProRes RAW.
Nikon + RED Color Science
The partnership of Nikon and RED provides a wide range of compatibility with production workflows, offering REDCODE RAW R3D recording format along with Nikon's N-RAW, ProRes RAW HQ/422 HQ, and the high-quality compressed H.264 and H.265 codecs. REDCODE RAW (R3D NE) unlocks the same color space (REDWideGamutRGB) and Log curve (Log3G10) as RED cameras.
The camera captures resolutions up to 6K60, 4K120, and even 1080p240 for high frame rate, slow-motion recording.
Audio Capture
The ZR captures high-quality audio using dynamic 32-bit float and 24-bit recording, and it supports standard 48 kHz linear PCM for full video compatibility.
It features built-in configurable mics, a line input that provides the ability to record with an external microphone, and the camera's digital accessory shoe that can utilize mics such as the ME-D10 shotgun or H2315 shoe mic attachment. A headphone jack allows you to monitor the audio.
Recording and Output
The camera records to a CFexpress Type B card slot that is accessed through the battery door to keep the camera compact and mobile while a microSD card slot is available for proxy recording. There is also a micro-HDMI output that allows you to output to a display or recording device.
Advanced Autofocus
Nikon's advanced autofocus feature is powered by deep learning, providing up to 9-subject detection autofocus with automatic tracking of people, animals, and vehicles.

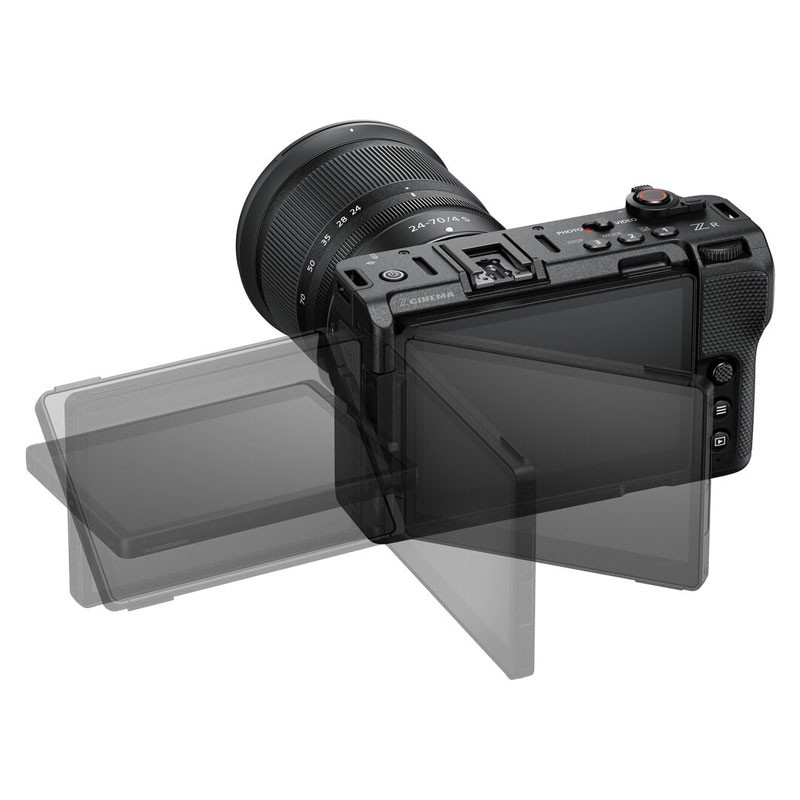

Large, Bright Display
The built-in 4" variable-angle touchscreen display features a DCI-P3 color gamut, 1000 cd/m² brightness, and a 3.07 million dot resolution for viewing your controls and footage with ease.
The display can automatically flip when you change from horizontal to vertical mode.
Custom LUTs
The camera provides the ability for the operator to load up to 10 LUTs into the camera for real-time preview on its display.
Lenses and Image Stabilization
The standard Z lens mount allows you to utilize the entire line of NIKKOR Z lenses and a wide range of third-party lenses and lens mount adapters.
The ZR provides integrated image stabilization with any prime or zoom lens at up to 7.5 stops to provide smooth, steady image capture.
Dual-Base ISO
The ZR provides extended ISO sensitivity to the base ISO with its dual-base ISO, providing 800/6400 for both Log3G10 and N-Log profiles.
Frame.io Integration
The camera's companion app allows you to streamline your workflow by connecting the camera to your phone and utilizing the optional Frame.io cloud service, making asset control, post production, and live streaming easy.
Power Options
The camera is powered via one EN-EL15c battery in its battery slot, or it can be powered via USB-C using an external power source such as an optional power supply or power bank.
Ultracompact Design
This tiny camera is the size of a small mirrorless camera but packs in cinema camera technology.
Take the camera into the field, mount it onto a vehicle, stabilize it on a gimbal, or perform steadycam, drone, or POV shots - it's lightweight enough to perform just about anywhere.
Specifications
- Lens Mount: Nikon Z
- Lens Communication: Yes: with Autofocus Support
- Image Sensor: 35.9 x 23.9 mm (Full-Frame) CMOS
- Sensor Resolution: Effective: 24.5 Megapixel
- Image Stabilization: Sensor-Shift, 5-Axis
- Built-In ND Filter: No
- Built-In CC Filter: No
- Internal Filter Holder: No
- Shutter Type: Electronic Rolling Shutter
- Shutter Speed: Electronic Shutter 1/16000 to 900 Seconds
- Shutter Angle: 5.6 to 360°
- ISO/Gain Sensitivity: Native: 800, Native: 6400
- Advertised Dynamic Range: 15 Stops
- Internal Recording: ProRes RAW HQ/Raw/REDCODE RAW, UHD 6K (6000 x 3000) up to 60.00 fps, DCI 4K (4096 x 2160) up to 120 fps, UHD 4K (3840 x 2160) up to 120 fps, 1920 x 1080p up to 240 fps, Video Output: Micro-HDMI 3840 x 2160
- Fast-/Slow-Motion Support: Yes
- Gamma Curve: Nikon N-Log, REDWideGamutRGB
- Built-In Microphone: Stereo
- Media/Memory Card Slot: Slot 1: CFexpress Type B, Slot 2: microSD/microSDHC/microSDXC (UHS-I)
- Internal Storage: No
- Video I/O: 1x Micro-HDMI Output
- Audio I/O: 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input, 1x 1/8" / 3.5 mm TRS Stereo Headphone Output
- Power I/O: 1x USB-C Input
- Other I/O: 1x USB-C Data Output (Shared with Power Input)
- Wireless: Wi-Fi / Bluetooth
- Mobile App Compatible : Yes: Android & iOS
- Global Positioning (GPS, GLONASS, etc.) : No
- Battery Type: Nikon EN-EL15c
- Dimensions (W x H x D): 133 x 80.5 x 48.7 mm
- Weight: 540 g (Body Only)
