Cinematic Capture in a Compact, Streamlined Form
With a compact design for solo shooters, travel applications, or as an ideal B camera, the Sony FX3A borrows from both the Cinema Line and Alpha series of cameras to create an optimized portable cinema camera. The FX3A features all the imaging attributes you'd expect from this class but sports a new lightweight, handheld form with a streamlined profile and a "cage-free" design, offering the ability to secure various accessories directly to the camera body.
Expressive UHD 4K Video Capture
The FX3A's 12.1MP Exmor R BSI CMOS sensor (10.2MP effective in video mode) is paired with a BIONZ XR processor to achieve UHD 4K video capture with internal 10-bit 4:2:2 sampling or 16-bit raw output. The sensor's BSI design heightens clarity and sensitivity, with an expandable ISO 80-409,600 range and a greater-than-15-stop dynamic range for working in mixed lighting conditions. Benefiting color and tonal control, the S-Cinetone mode can be used for matching to VENICE, FX9, or FX6 sources, and there is also S-Log3/2 gamut support and 10-bit HLG for simple HDR productions. The sensor and processor also work together to greatly reduce rolling shutter, and the sensor's design incorporates a Fast Hybrid AF system for intelligent and quick focusing performance and subject tracking.

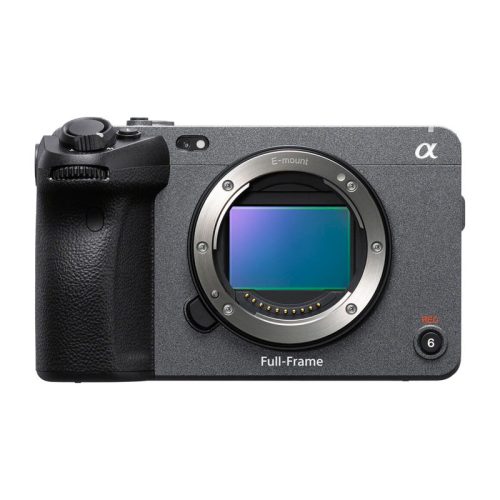

4K Full-Frame CMOS Exmor R Sensor
A 12.1MP Exmor R sensor and BIONZ XR processor offer the FX3A true cinematic expression with 10.2MP effective video and 12.1MP still capture. The full-frame sensor provides shallow depth of field looks, impressive bokeh, and reduced rolling shutter artifacts. A base sensitivity of 80-102,400 expands to a lofty 409,600 for impressive low-light capture, and 15+ stops of dynamic range reproduce the nuances of both spectacular exteriors and carefully lit interior scenes with plenty of allowance for color grading.
S-Cinetone Color
Beautiful skin tone reproduction and a softer-toned look that complements your VENICE, FX9, or FX6 footage are created using the FX3A's default S-Cinetone color setting. S-Log-3, S-Gamut3.Cine, and 10-bit 4:2:2 support help maintain rich gradation and color matching with the range of Sony Cinema Line cameras, while HLG HDR provides the option of direct HLG playback without the need for grading.
Video Recording
Capture sharp, detailed images at rates up to 4K 120p with up to 5x slow motion at 24p output. Recording options include the ability to output DCI 4K+ in 16-bit raw over HDMI to compatible recorders while simultaneously recording XAVC 4K and proxies in-camera. Internal 4K recording options include 4:2:2 10-bit color with All-Intra and Long GOP codecs.

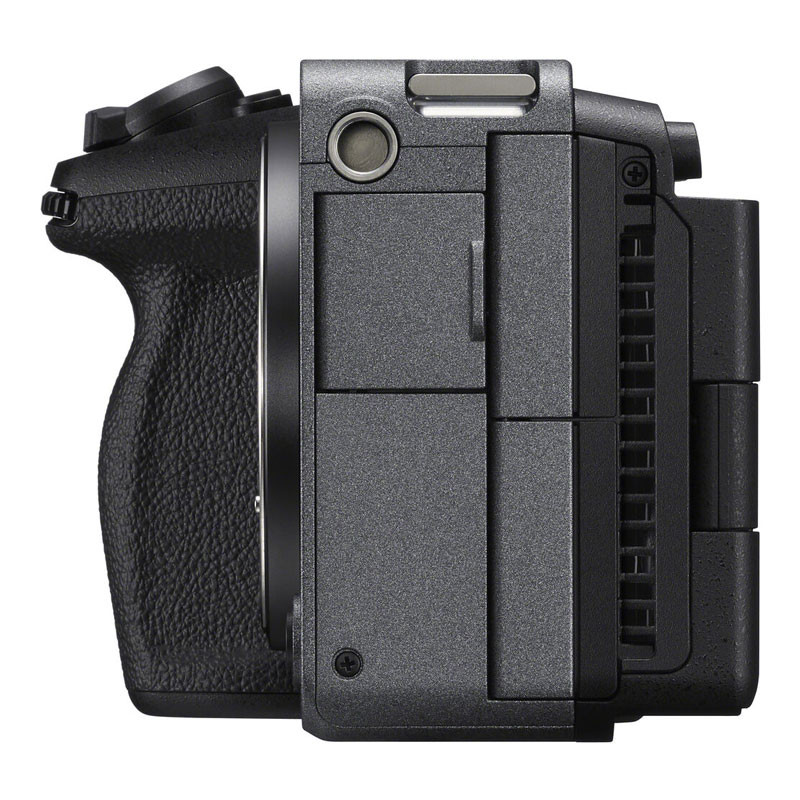

- Cooling features like a silent fan and a heatsink dissipate warmth to enable uninterrupted recording up to 4K60
- Dual SD card slots accept both CFexpress Type A and SDXC cards for easy relay or backup recording
- Super 35 1080p capture at rates up to 240p
Steady Focus
- Now, even solo shooters can keep the action in focus thanks to real-time Tracking and Eye autofocus functions made possible by AI-based algorithms, plus a simple touchscreen focus function.
- Seven choices of AF Transition Speed let you rack focus, and five AF Subject Shift settings enable you to adjust the speed when shifting from a locked-on subject.
- Fast Hybrid AF uses 627 points to cover approximately 89% of the image frame.
Ergonomic Form for Solo Operation

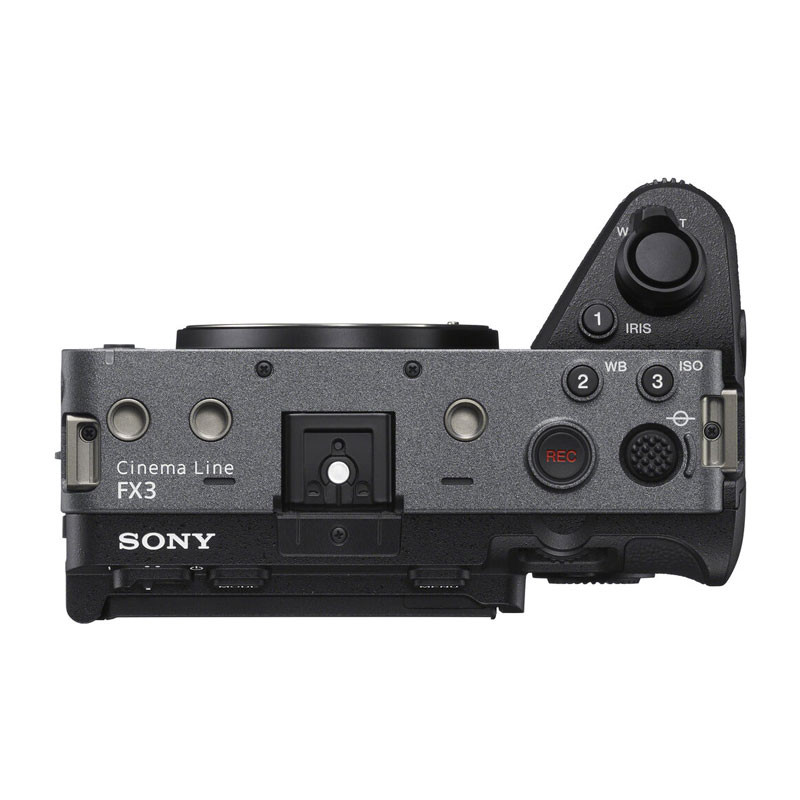

The FX3A's cage-free design enables you to mount 1/4"-20 compatible accessories directly on the camera or the detachable handle, saving you the weight and setup/breakdown time of a camera cage. The clustered record button, focus and menu controls, and six assignable buttons all help to enable single-handed control, leaving your left hand free for balancing or controlling your lens.

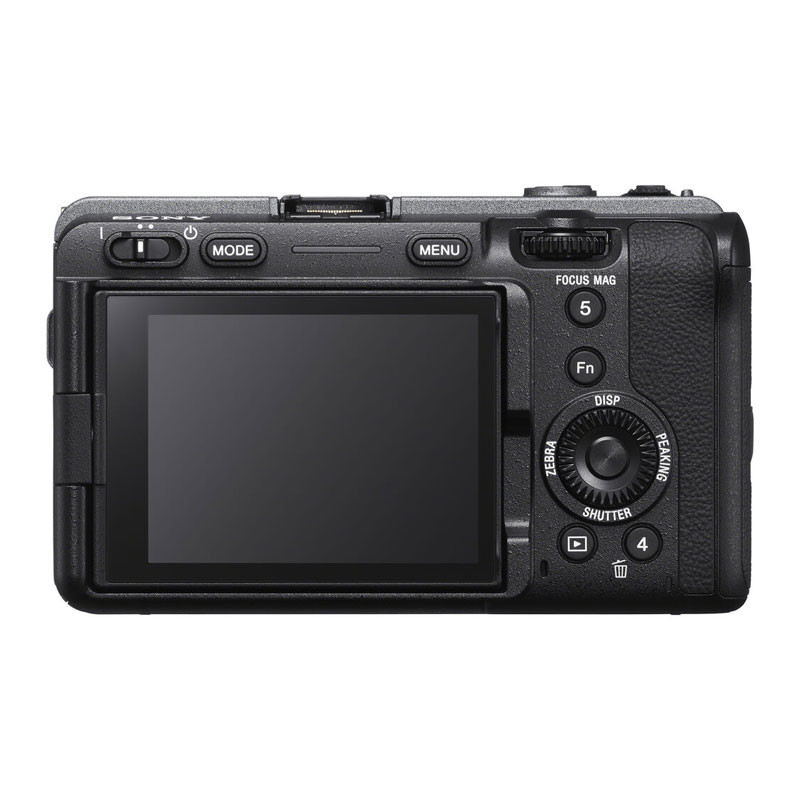

Tilting Touchscreen LCD
The fold-out 3" touchscreen LCD has a crisp 2.35MP resolution and can be variously angled for optimal viewing.
Easily Viewable Tally Lights
- Top, front, and rear tally indicators let the operator, talent, and sound person know precisely when the camera is recording.
- This enables more accurately timed movements and dialogue delivery.
Remote Control, Streaming, and Transfers
- Control your FX3A remotely using the Imaging Edge Mobile or Imaging Edge Desktop apps, and transfer files using Wi-Fi or via a wired USB-C connector to let your editor get a jump on post-production.
- You can also stream your content using your computer and the Imaging Edge Webcam app.
Specifications
- Lens Mount: Sony E
- Lens Communication: Yes, with Autofocus Support
- Sensor Resolution: Actual: 12.1 Megapixel, Effective: 10.2 Megapixel
- Image Sensor: 35.6 x 23.8 mm (Full-Frame) CMOS
- Image Stabilization: Sensor-Shift, 5-Axis
- Built-In ND Filter: No
- Internal Filter Holder: No
- Shutter Type: Mechanical Focal Plane Shutter and Electronic Rolling Shutter
- Shutter Speed: 1/8000 to 1/4 Second
- ISO/Gain Sensitivity: Native 80 to 102,400 (80 to 409,600 Extended)
- Advertised Dynamic Range: 15 Stops
- White Balance: 2500 to 9900K
- Internal Recording Modes: H.265 Long GOP/XAVC HS 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps [50 to 280 Mb/s]
H.265 Long GOP/XAVC HS 4:2:0 10-Bit
3840 x 2160 at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps [30 to 150 Mb/s]
MPEG-4 AVC/XAVC S 4:2:2 10-Bit
3840 x 2160 at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps [100 to 280 Mb/s]
1920 x 1080p at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps [50 Mb/s]
MPEG-4 AVC/XAVC S-I 4:2:2 10-Bit
4096 x 2160 at 1/2/3/6/12/23.98/24.00/29.97/48.00/59.94 fps
UHD 4K (3840 x 2160) at 1/2/3/4/6/8/12/15/23.98/25/29.97/59.94/100/120 fps [240 to 600 Mb/s]
1920 x 1080p at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps [89 to 222 Mb/s]
MPEG-4 AVC/XAVC S 4:2:0 8-Bit
3840 x 2160 at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps [60 to 200 Mb/s]
1920 x 1080p at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps [16 to 100 Mb/s]
XAVC Proxy
1920 x 1080 [9 to 16 Mb/s]
1280 x 720 [6 Mb/s]
- External Recording Modes: Raw 16-Bit via HDMI
4264 x 2408 at 23.98/25/50/59.94 fps
3840 x 2160 at 23.98/25/50/59.94 fps
1920 x 1080p at 23.98/25/50/59.94 fps
1920 x 1080i at 50/59.94 fps
- Fast-/Slow-Motion Support: Yes
- Gamma Curve: HDR-HLG, S Cinetone, Sony S-Log 2, Sony S-Log 3, Standard
- Built-In Microphone: Stereo
- Audio Recording: 4-Channel 24-Bit LPCM Audio, 2-Channel 24-Bit LPCM Audio
- IP Streaming: No
- Media/Memory Card Slot: Dual Slot CFexpress Type A / SD

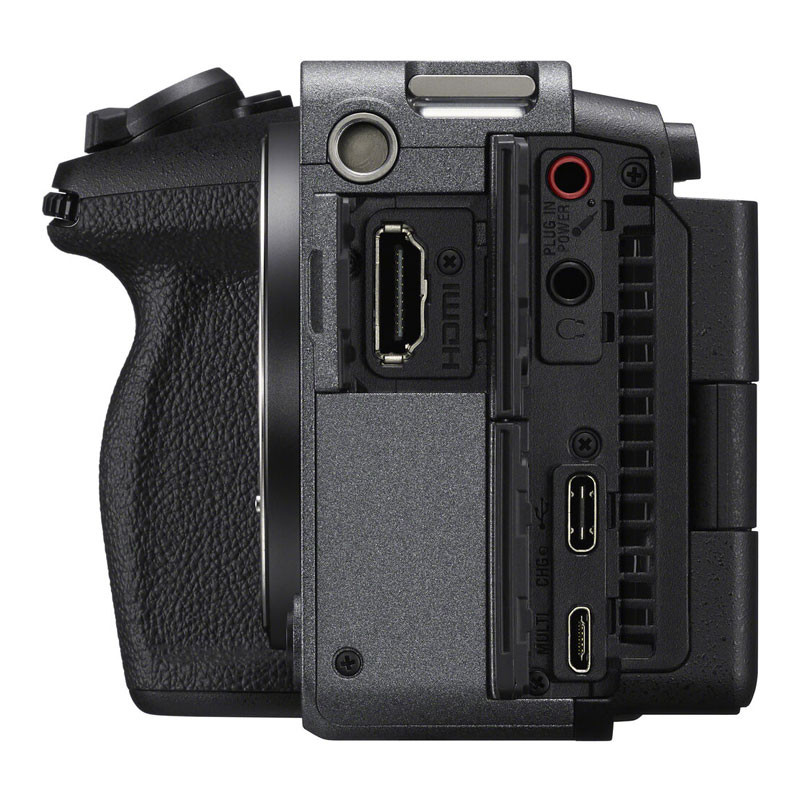

- Video I/O: 1x HDMI (Unspecified Signal) Input
- Audio I/O: 1x 1/8" / 3.5 mm TRS Stereo Microphone Input, 1x 1/8" / 3.5 mm TRS Stereo Headphone Output
- Power I/O: 1x USB-C Input
- Other I/O: 1x Micro-USB
- Wireless: 2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth
- Mobile App Compatible: Yes Android & iOS, App Name: Creators' App
- Global Positioning (GPS, GLONASS, etc.): No
- Display Type: Primary Monitor 180° Tilting 3" Touchscreen LCD
- Resolution: Primary Monitor 2,350,000 Dot
- Focus Mode: Automatic, Continuous-Servo AF, Direct Manual Focus, Manual Focus
- Autofocus Points: Phase Detection 627
- Battery Type: NP-FZ100
- Power Consumption: 7.3 W
- Weight: 640 g (Body Only), 715 g (With Battery, Recording Media)
