Viltrox DC-L1 7" HDMI Touchscreen kontroll monitor

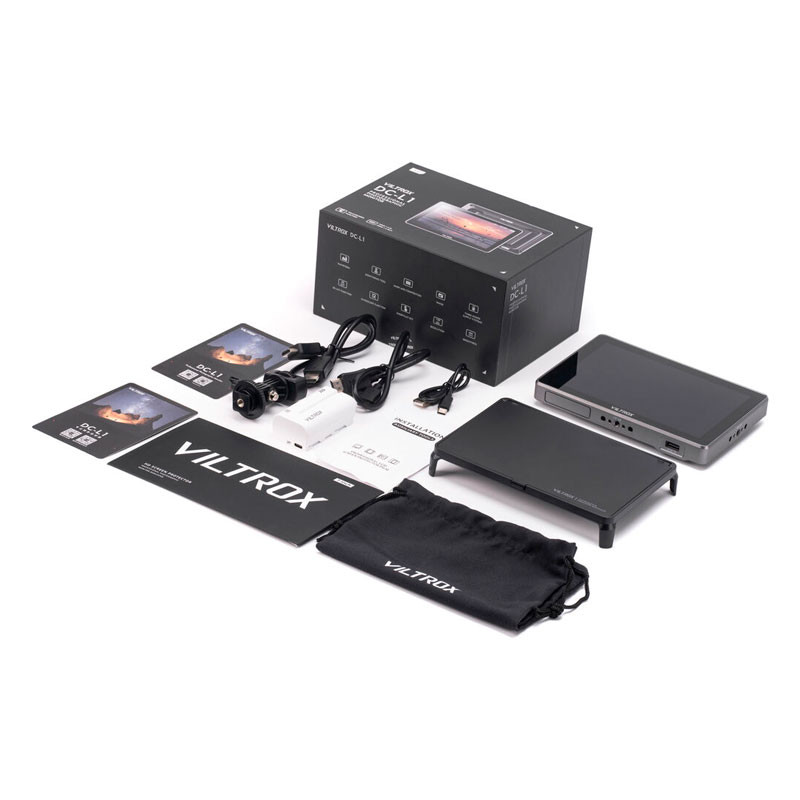

The lightweight DC-L1 7" HDMI On-Camera Touchscreen Monitor from Viltrox provides professional monitoring in a sharp 7" display suitable for outdoor use with a 1280 x 800 resolution. The DC-L1 supports up to DCI/UHD 4K video input via mini-HDMI. It provides an HDMI loop-through output to send video to another monitor. Other features include custom 3D LUTs, L-series and USB power options, and multiple included accessories.

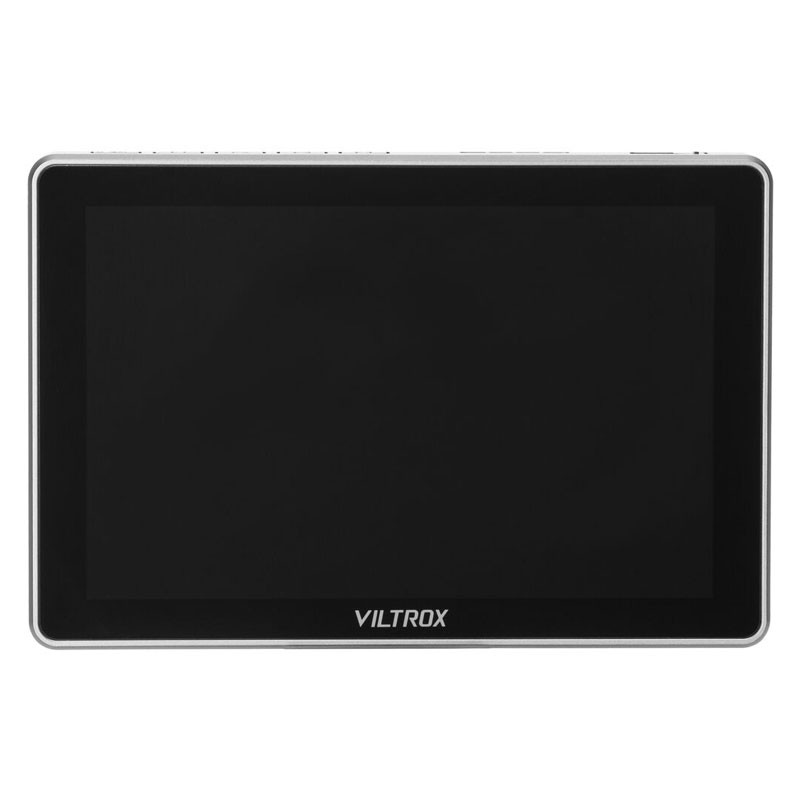

High-Resolution Display

Daylight-viewable 7" on-camera LCD touchscreen monitor with a 1280 x 800 resolution that supports up to DCI/UHD 4K input via HDMI.

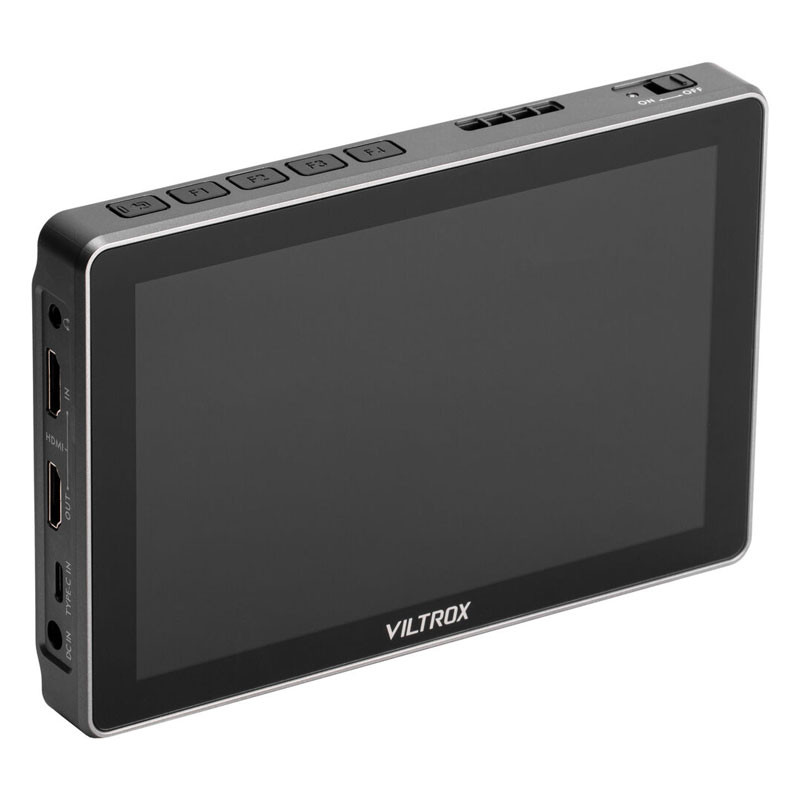

Input/Output

The monitor inputs up to DCI/UHD 4K60 video via HDMI and it can output using the HDMI loop output. There's also a USB port to import 3D LUTs and to update firmware. You can import up to 20 custom 3D LUT files.

Image Tools

The monitor features numerous built-in image tools that assist in managing your image, including focus, brightness histogram, false color, screen focus, anamorphic de-squeeze, and more.

Power Options

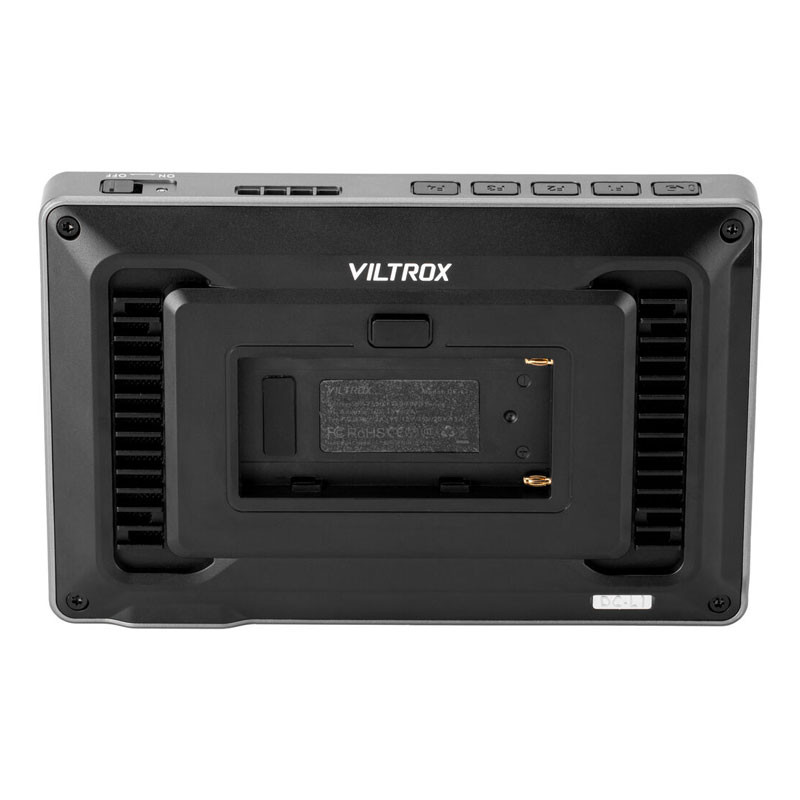

The monitor powers using an L-series-type battery or via a separately available USB-C or DC barrel power supply. Supported L-series battery types include NP-F550, F750, and F970.

Built-In Gyroscope

A built-in gyroscope provides auto-detection of whether your screen is flipped up or down, and it will flip the image accordingly, making switching camera positions easy.

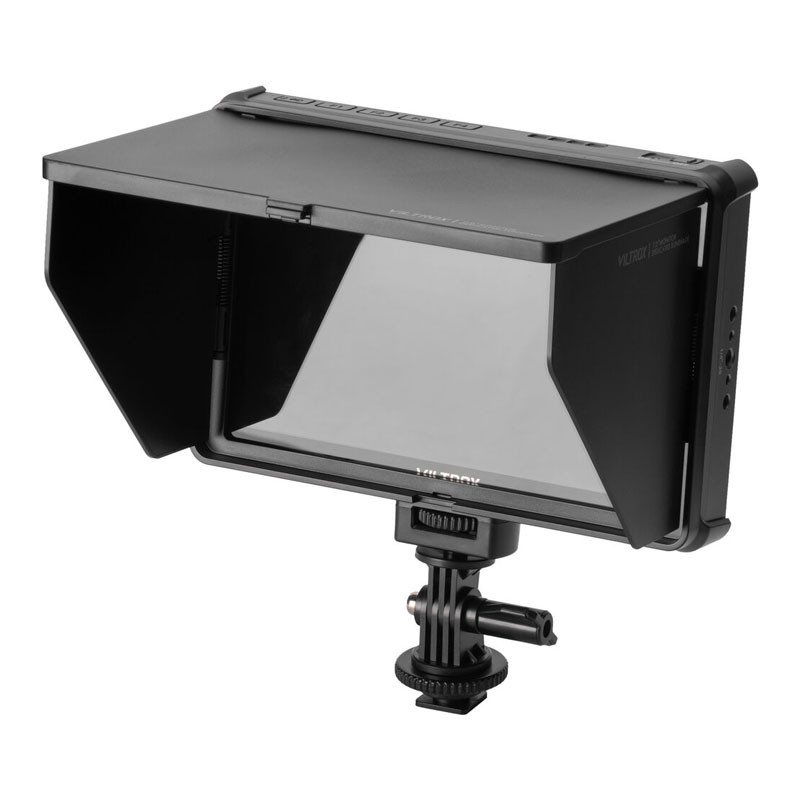

Mounting Options

There are 1/4"-20 threads on one side and on the bottom that allow you to mount the monitor onto a cage, directly on a camera, or utilize various accessories such as the included shoe adapter mount or an optional magic arm or tilt mount.
