FROM EVOLUTION TO REVOLUTION

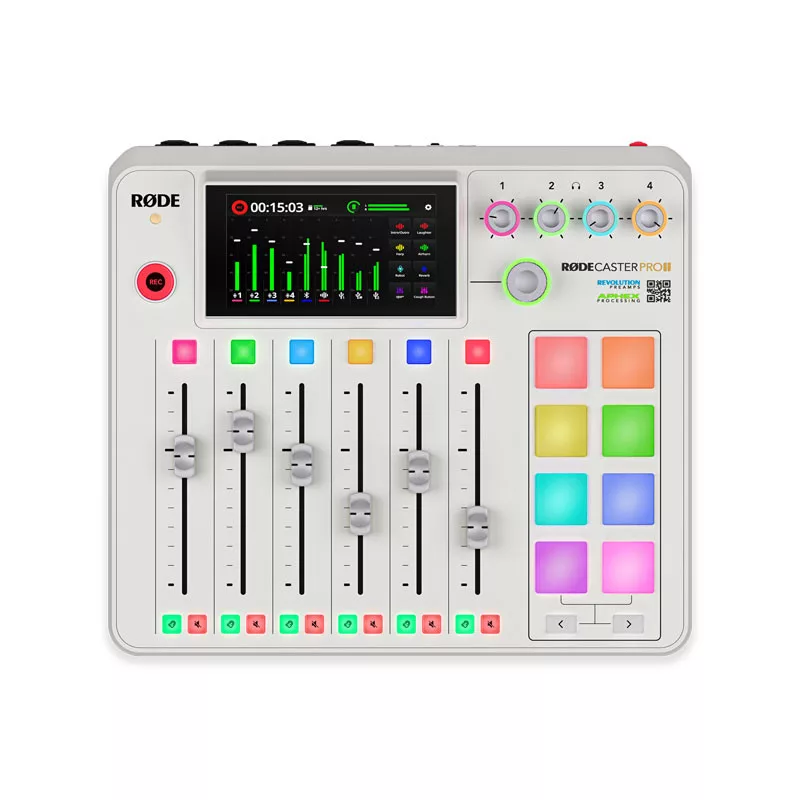

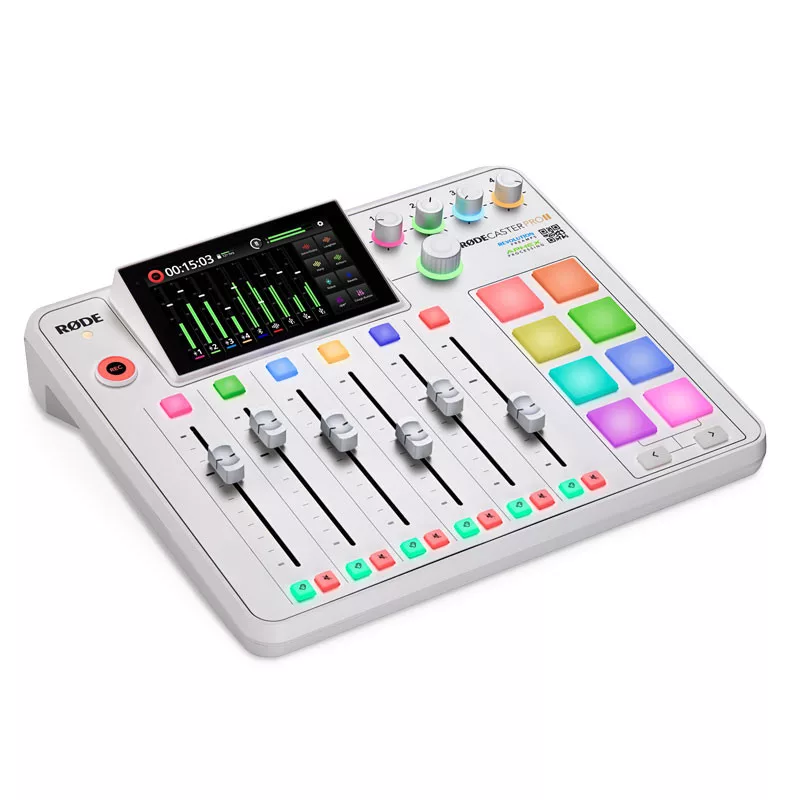

Designed for far more than podcasting, the RØDECaster Pro II integrated audio studio from RØDE builds intelligently on the success of its predecessor with major improvements in sound quality, connectivity, and adaptability. Its expanded feature set makes it equally appealing to streamers, gamers, and music-oriented content creators. This all-in-one solution enables advanced production workflows through a large touchscreen and tactile controls, studio-grade onboard processing, multitrack recording and mixing, assignable sound pads, and extensive customization options. Create and mix content on the fly in seconds—whether combining up to four microphones, music, prerecorded segments, or calls from remote guests.
Product Features
- Ideal for content creators producing podcasts, live broadcasts, or music recordings
- Ultra-low-noise, high-output Revolution™ preamps for exceptionally clean and detailed sound
- Powerful Quad-Core DSP offering significantly greater capacity and speed than competing solutions
- Studio-grade APHEX® processing for professional sound quality
- Extensive onboard effects including reverb, echo, robot voice, pitch modulation, and more
- Advanced SMART pads for triggering sounds and effects, sending MIDI commands, or controlling mixer functions—8 memory banks for up to 64 customizable actions
- Extensive customization with nine assignable channels, detailed editing options, programmable SMART pads, and many other configuration possibilities
- Recording to microSD card, computer, or external storage, in stereo or multitrack formats
Enhanced Bluetooth connectivity for high-quality phone call integration
Dual USB-C connections for simultaneous connection of two computers and/or mobile devices, Neutrik XLR-jack combo inputs for microphones and instruments, plus Wi-Fi and Ethernet connectivity
- Four 6.3 mm TRS headphone outputs and one stereo line output
- 5" high-resolution touchscreen with rotary encoder for fast navigation and control
- Continuous improvements through free firmware updates
For Every Creative Producer
The RØDECaster Pro II is not simply an upgrade of its predecessor—it is an entirely new beast. Packed with revolutionary next-generation features, this console is one of the most capable integrated audio production systems available, designed not only for podcasters but for all creative professionals.
Revolutionary Sound Made Simple
The RØDECaster Pro II’s comprehensive feature set delivers exceptional sound quality for any production workflow. Its four Neutrik XLR-jack combo inputs support a wide range of microphones and instruments, including guitars, basses, keyboards, and other line- or mic-level sources, opening up new creative possibilities.
Each input is powered by RØDE’s ultra-low-noise, high-gain Revolution™ preamps, designed and manufactured by RØDE specifically for the RØDECaster Pro II. These world-class preamps rival dedicated units costing thousands of dollars per channel. With an incredibly low input noise of -131.5 dBV and up to 76 dB of gain, they deliver stunningly clean and detailed sound—even with low-output dynamic microphones.
The RØDECaster Pro II also includes the full suite of studio-grade APHEX® audio processors known from earlier RØDE products. These processors have been completely redesigned based on detailed component-level analysis of their analog counterparts. The result is powerful and dynamic signal processing capable of delivering the sonic character of a professional studio.
At the heart of this processing system is a high-performance quad-core DSP, built on a proprietary architecture and offering significantly greater capacity than any comparable console currently available. The RØDECaster Pro II also features an integrated effects processor, enabling creators to craft their own unique sonic identity.
Despite its advanced capabilities, the RØDECaster Pro II remains remarkably easy to use. Every function has been designed to support creativity without unnecessary complexity. The high-resolution touchscreen, combined with a rotary encoder, makes navigation and control extremely intuitive. Well-configured factory presets and the innovative VoxLab™ processor editor help even inexperienced users achieve professional sound quickly.
Endless Customization, Unlimited Creative Freedom
The RØDECaster Pro II is fully customizable, allowing it to adapt easily to any creative production environment—whether streaming, gaming, podcasting, or music production.
The mixer provides nine channels, controlled by six broadcast-quality physical faders and three virtual faders. These channels can be freely assigned to any input source, allowing users to configure the mixer according to their workflow.
The eight SMART pads go far beyond simple sound or effect triggers. They can be customized to trigger effects such as echo, reverb, robot voice, or pitch modulation in real time, send MIDI commands to external software or hardware, or automate mixer actions such as fade-ins and fade-outs. Each pad includes eight memory banks, allowing up to 64 programmable actions to be stored and triggered instantly.
All effects and APHEX processors are fully customizable, with detailed editing options enabling precise adjustment for different voices or instruments. Every configuration can be saved as a preset and recalled instantly on any channel.
All mixer settings—including channel assignments, SMART pad configurations, and even full production setups—can be stored as “Show” presets in the console’s memory. This allows rapid setup and recording startup for rehearsed productions, making the RØDECaster Pro II ideal for studios that produce multiple types of content or environments where different users require personalized configurations.
Exceptional Connectivity
The RØDECaster Pro II’s connectivity provides greater creative flexibility, streamlined workflows, and easier integration with other equipment—making it a central audio hub for any creator.
The four microphone and instrument inputs support everything from solo podcasts to multi-host productions, small ensemble recordings, and live broadcasts. Four headphone outputs and a balanced stereo 6.3 mm TRS output for speakers ensure crystal-clear monitoring.
Two USB-C ports allow simultaneous bidirectional connection to two computers or mobile devices. An additional virtual USB channel enables real-time integration of audio from chat or conferencing applications, making remote podcasts and complex streaming setups easy to implement. The USB connections are MFi certified, ensuring seamless integration with iOS devices.
Advanced wideband Bluetooth connectivity allows high-quality phone calls and interviews to be recorded directly through the mixer. Bluetooth also enables streaming from mobile devices or connection to wireless speakers. Recording can be made directly to a microSD™ card, computer, or external storage device via high-speed USB transfer.
The RØDECaster Pro II also includes Wi-Fi and Ethernet connectivity, enabling firmware updates, hardware and software integration, and additional future functionality.
Technical Specifications
- Microphone input frequency response: 20 Hz – 20 kHz
- Monitor output frequency response: 20 Hz – 20 kHz
- Input impedance: 4 kΩ (Mic), 1 MΩ (Line)
- Equivalent noise level: -131.5 dBV (A-weighted)
- Maximum output level: 4 dBu (Line Outputs)
- Headphone output power: 250 mW
- Dynamic range: 113 dBA
- Gain range: 0–76 dB
- Power requirements: 30 W USB-C PD (15 V, 2 A)
- Analog audio inputs: 4 × Neutrik XLR-jack combo connectors
- Analog audio outputs: 2 × 6.3 mm TRS line outputs, 4 × 6.3 mm TRS headphone outputs
- Bluetooth: Wideband audio connection with music and headset profiles
- USB Interface 1: Stereo audio input / 16-channel multitrack output, Stereo I/O with mix-minus (N-1)
- USB Interface 2: Stereo I/O with mix-minus (N-1)
- Digital sampling: 48 kHz / 24-bit
- Recording media: microSDHC / microSDXC cards, External USB-C storage (exFAT, min. 100 MB/s), Computer
- Data transfer: USB 3.0 SD card reader, 130 MB/s
- Network: Wi-Fi 802.11 g/n/ac (2.4 GHz & 5 GHz), Ethernet 100/1000
- OS requirements: macOS 10.15 or later, Windows 10 Version 1803 or later, Windows 11
- Dimensions: 305 × 270 × 60 mm Weight: 1950 g
